Upgrading a UV laser isn’t just about more power — it’s about cutting engraving time, improving clarity, and expanding what your machine can do. The ComMarker Omni X/XE 12W Upgrade Kit delivers exactly that. If you’re wondering whether the 12W UV laser upgrade is worth it, this hands-on guide will walk you through the real-world benefits.
This upgrade boosts the original 6W Omni X/XE to a true 12-watt UV laser, dramatically improving engraving speed, depth, and clarity across materials like stainless steel, slate, wood, and glass.
Let’s explore what this upgrade offers—and whether it’s the right move for your workshop or engraving business.
What Comes With the 12W UV Laser Upgrade Kit?
ComMarker’s new upgrade kit transforms the Omni X or XE into a powerful 12W engraving machine. Here are the highlights:
Key Specifications
-
12W UV Laser Source (not 10W — officially upgraded to 12W)
-
Autofocus + LiDAR Ranging System
-
Two field lenses:
-
250×250mm
-
70×70mm
-
-
Max Engraving Speed: 10,000 mm/s
-
Supports dozens of materials with almost no burn marks
-
Optional conveyor & rotary support
This is the most significant performance upgrade released for the Omni X/XE to date.
How Easy Is It to Install the 12W Upgrade?
Surprisingly easy—even if you’re not a technician.
The entire upgrade involves removing the original module and replacing it with the new 12W laser head. It’s mostly screws and keyed plugs (which only fit in one direction), so installation is beginner-friendly.
Installation Steps (Simplified):
-
Remove side and rear screws
-
Unplug all ports
-
Lift off the shell and disconnect the old laser module
-
Install the new 12W unit
-
Reconnect plugs
-
Reattach the enclosure and screws
-
Power on and perform lens calibration
Total time: 15–25 minutes
The upgrade process is so straightforward that most users complete it without any troubleshooting.
Lens Calibration: Quick & Precise
Once installed, you’ll calibrate your field lens in ComMarker Studio.
With a simple square test and measurement input, the software auto-corrects distortion and sets accurate parameters. The new 12W module calibrates cleanly for both the 70×70 and 250×250 field lenses, ensuring sharp results across the entire workspace.
Real Engraving Tests: 6W vs 12W UV Laser
To evaluate the upgrade, the creator engraved identical samples using the same settings before and after the upgrade.
1. Black Coated Metal — Crisp & Fast
-
Deep contrast
-
Sharp, clean lines
-
Only about 1 minute per card
The 12W doesn’t just engrave well—it engraves fast.
2. Stainless Steel — Deep Engraving You Can Feel
With the 12W:
-
No heat buildup
-
Engraving becomes tactile
-
Excellent dark/white contrast
Three passes produced a permanent, textured finish without warping the metal.

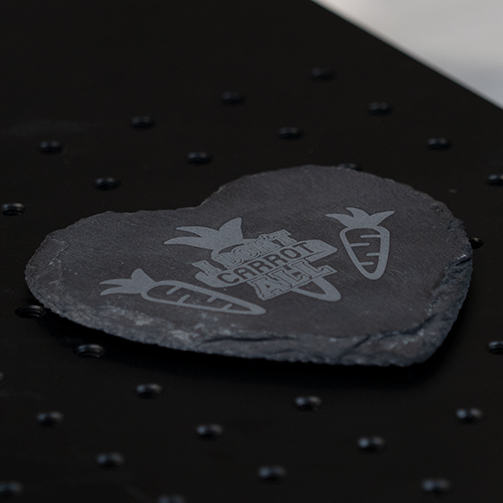

3. Slate Coaster — Brighter Whites
The 12W output:
-
Much brighter white engraving
-
More visible detail
-
Faster pass times
Definitely a major improvement for slate products.
4. Glass Engraving — Where UV Shines
UV lasers excel on glass, and the 12W takes it further:
-
Clean, bright results
-
Tight focal point
-
Minimal chipping
-
Fast 1.5-minute engrave times
Using masking tape or transparency sheets helps maintain proper focus.
5. Cutting Boards (Wood & Bamboo)
The 12W powers through:
-
Large cutting boards
-
Bamboo boards (notoriously difficult)
-
Deep, clean lines
The results are professional-grade and profitable for Etsy-style personalization.

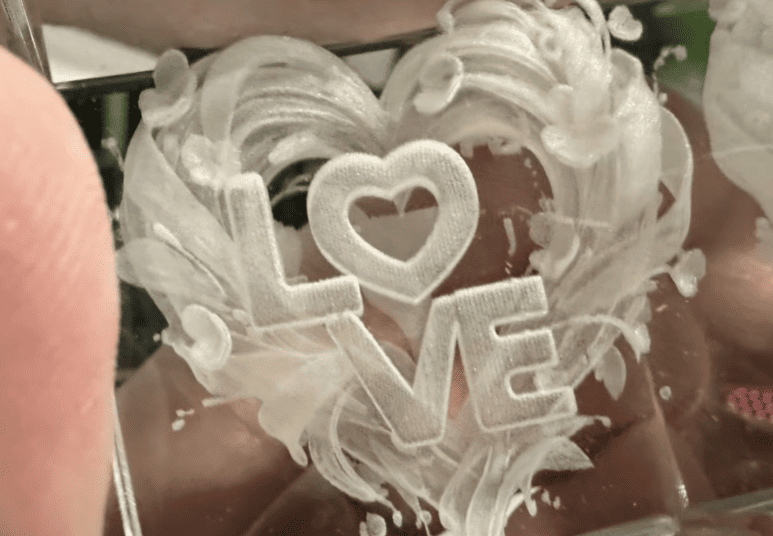

Ultra-Detailed 3D Inner Engraving (Crystal)
This is where the 12W UV module becomes unbeatable.
OBJ files with textures render stunning subsurface engravings with depth and shading that lower-power UV lasers simply can’t achieve.
Even large 70×70×120 mm crystal blocks engrave beautifully.
With OBJ-based texture support:
-
Eyes, hair, armor, and clothing appear with real shading
-
High-detail engraves take ~1 hour but deliver premium results
-
These pieces easily sell at double the price of standard cubes
Examples engraved:
-
Darth Vader
-
Iron Man
-
Starship Enterprise
The clarity and density of dots with the 12W module are undeniably superior.
Final Thoughts
The ComMarker Omni X/XE 12W Upgrade Kit is one of the most impactful upgrades available for UV laser engraving today. Whether you’re engraving stainless steel dog tags, slate coasters, glassware, or high-value 3D crystal pieces, the 12W module delivers:
-
Faster processing
-
Cleaner contrasts
-
Deeper engravings
-
Superior crystal detail
-
Larger potential profit margins
For serious creators and engraving businesses, the upgrade isn’t just worth it—it’s transformational.
