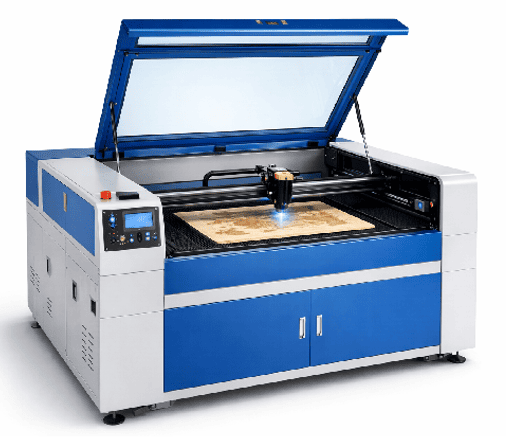

Traditional gantry CO2 lasers have long been popular for engraving and cutting, but their mechanical movement limits speed and precision.
Galvo CO2 technology uses high-speed scanning mirrors instead of moving laser heads, enabling faster engraving and finer details.
The ComMarker COX RF CO2 Galvo Laser brings this industrial technology to a desktop format with 15,000 mm/s speed and a 30,000-hour RF metal tube.
We tested its performance across multiple materials to explore how Galvo CO2 can help engraving businesses increase productivity, expand product possibilities, and create new opportunities in a competitive market.
Galvo CO2 vs Gantry CO2 Laser: The Main Differences
| Feature | Traditional Gantry CO2 Laser | ComMarker COX RF CO2 Galvo Laser |
| Laser movement | Moving laser head | Moving laser beam |
| Motion system | Rails and belts | Galvo scanning mirrors |
| Price | From $599 for 40W | From $2999 for 40W |
| Lifespan | 3000 hours (glass tube) | 30,000 hours (RF Metal tube) |
| Engraving speed | 1,200 mm/s | 15,000 mm/s |
| Precision at high speed | 0.14 mm × 0.16 mm | 0.005 mm spot size |
| Working area | 1000 mm × 500 mm. | 200 mm*200 mm (expandable to 200 mm * 400 mm |
| Max Cutting thickness | 30~40 mm | 20 mm~25 mm |
| Space Requirement | Large (About 1,200 mm × 800 mm) | Smaller (980mm*600mm) |
| Cooling | Water-cooled | Air-cooled |
| Best use case | Large, thick cutting jobs | Fast engraving and detailed marking |
 |
 |
RF Metal Tube: The Key to Galvo CO2 Precision
The ComMarker COX uses an RF metal tube instead of a traditional glass CO2 tube.
Compared with traditional glass CO2 tubes, RF metal tubes offer advantages of:
Smaller laser spot size
Powered by 8x beam expander, the 0.005 mm spot size enables print like engraving on materials.

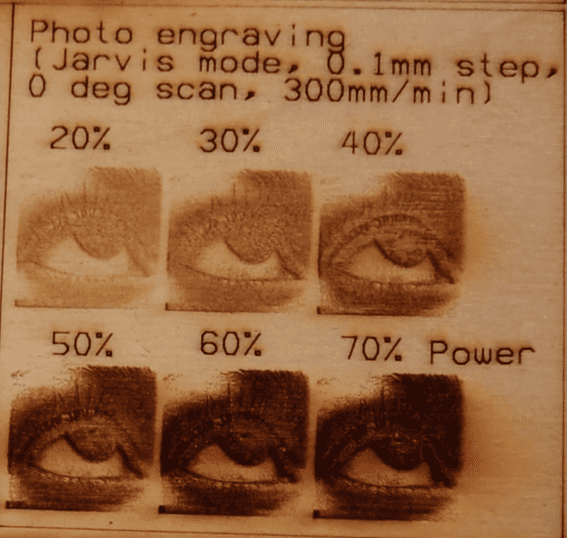

| ComMarker COX RF CO2 Galvo | Gantry CO2 |
 |
 |
The combination of an RF metal tube and Galvo scanning system enables the ComMarker COX to achieve high-speed engraving with precision. The RF tube produces a finer and more stable laser beam, while the Galvo system keeps the laser head stable and therefore avoids accuracy issues caused by mechanical movement in traditional gantry CO2 systems.
Stronger laser output
With a beam closer to the ideal TEM00 Gaussian profile than glass tube CO2, RF tubes focus laser energy into a smaller, more concentrated spot, improving energy density and engraving efficiency.
A 40W RF metal tube CO2 laser can deliver engraving performance comparable to a 70W glass tube CO2 laser.

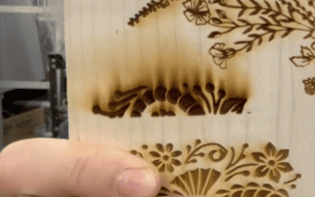

During testing, using the same settings from a 55W glass tube CO2 machine on ComMarker COX 40W RF CO2 laser resulted in overburning, showing the stronger energy performance of RF technology.
[Image: Wood engraving overburned with 55W glass tube CO2 settings]
Why Speed Matters for a Laser Engraving Business
For businesses, speed directly affects profitability. A faster laser allows businesses to reduce production time, complete more orders, and increase product output.
One of the most impressive applications tested was tumbler engraving.

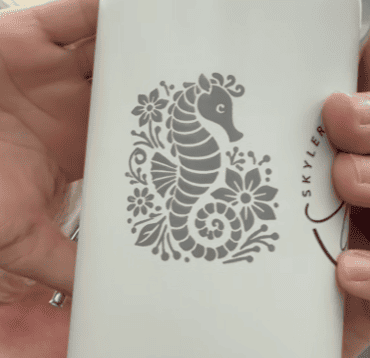

[Image: COX Tumbler Engraving Result]
The ComMarker COX finished a 50mm × 50mm size tumbler engraving in 13 seconds without rotary.
With a gantry CO2 laser, this will take 2~3 minutes waiting for the laser head to move back and forth.
| Application | Galvo CO2 Laser | Traditional Gantry CO2 Laser | Note |
| Simple tumbler engraving time | ~13 seconds / tumbler | ~2–3 minutes / tumbler | |
| Estimated production per hour | 67 tumblers/hour | 16–22 tumblers/hour | Includes 40 seconds of setup & positioning time per tumbler |
| Personalized tumbler engraving services commonly charge around $15–$25 per tumbler | |||
| Potential revenue per hour | $1,005–$1,675/hour | $240–$550/hour | |
For small engraving businesses offering Personalized tumblers, Corporate gifts and Promotional products, a Galvo CO2 laser could theoretically increase hourly revenue potential by up to 7× compared with a traditional gantry CO2 laser.
Is the Galvo CO2 Laser Capable for Business Engraving?—Sure!

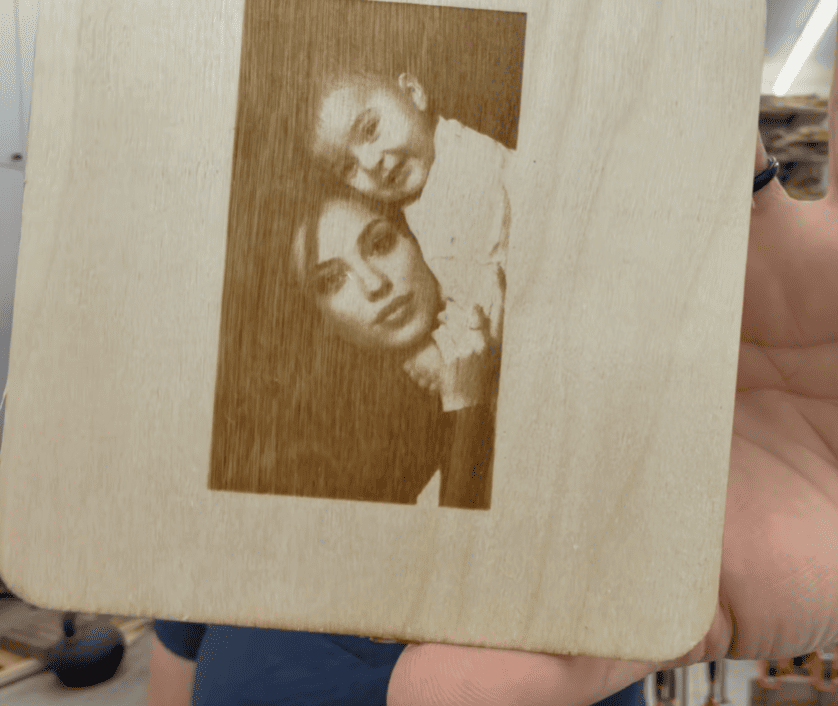

Photo Laser Engraving: High Detail from a CO2 Laser
Say a customer asked for a photo engraved tumbler or wooden ornament. Precision is what brought you the money.
The ComMarker COX RF CO2 laser produced detailed results on:
• Wood
• Acrylic
• Business cards
The smaller laser spot helped capture finer image details compared with traditional gantry CO2 systems.
 |
 |
 |

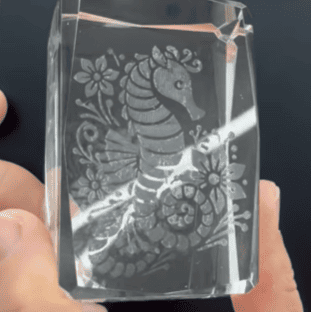

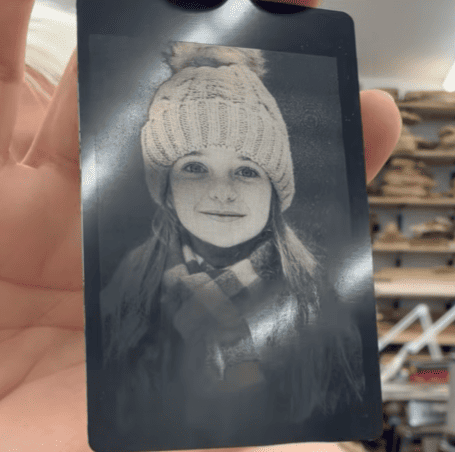

| Wood photo engraving | Metal business card photo | Glass engraving |

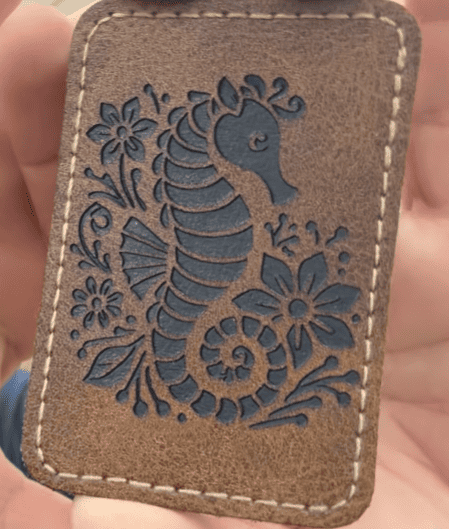

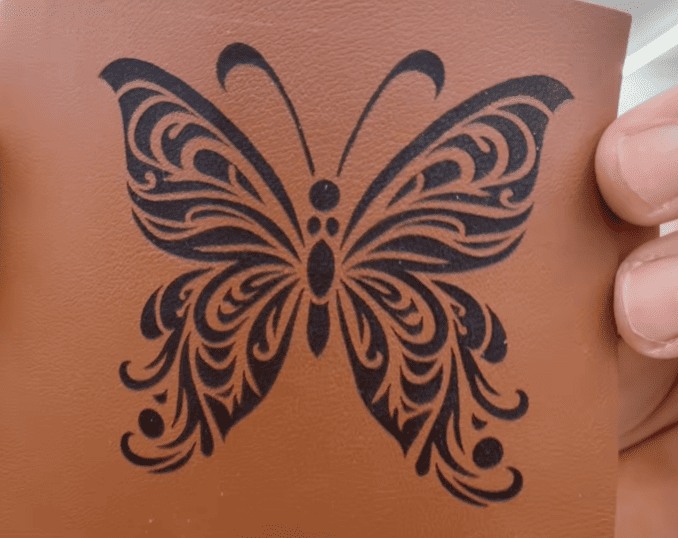

Leather Laser Engraving: Clean Details Without Charring
Leather is one of the materials where the RF CO2 laser showed impressive results.
|
The test produced: • Deep dark engraving • Sharp edges • High contrast • Minimal charring The engraving required almost no cleanup after processing.
|
 |
|
This makes galvo CO2 lasers attractive for businesses producing: • Leather hat patches • Custom wallets • Bags • Personalized accessories |
 |

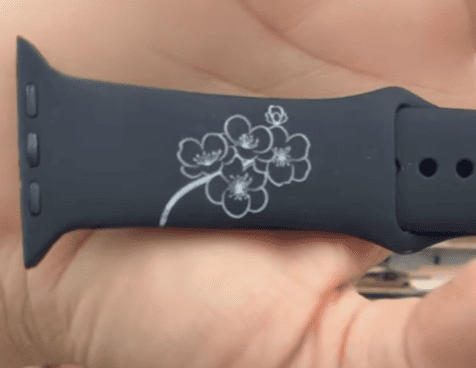

Laser Engrave Silicone Clear Detail Without Burning
Silicone is notoriously difficult to engrave without melting or burning due to its low melting point.
The RF tube’s precise pulse control and the galvo system’s high speed minimize heat exposure, enabling clean, detailed marks that would otherwise be impossible on a slower gantry machine.
For personalization businesses, this opens up the ability to offer customized silicone products, including watch bands, tableware, medical tags, and industrial parts.

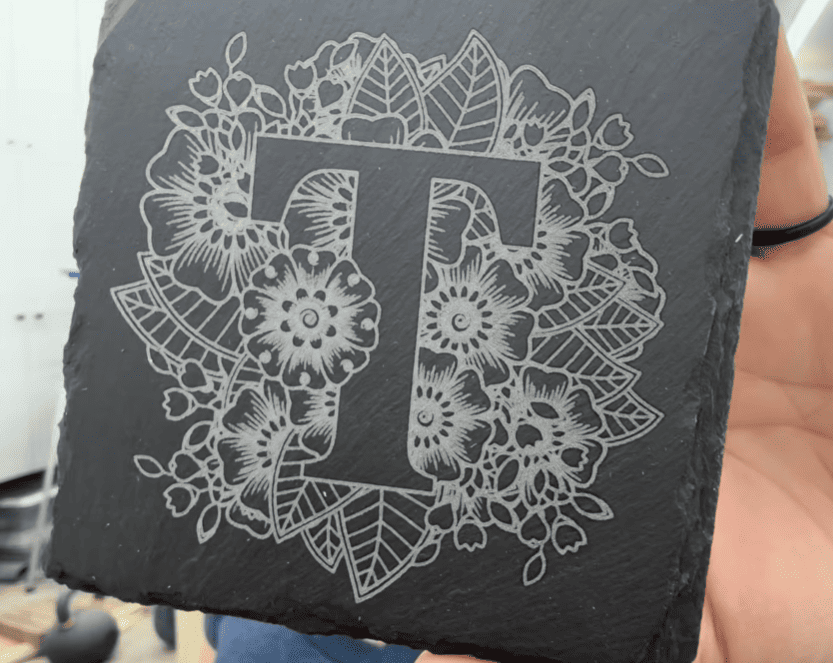

Stone Laser Engraving
CO2 lasers operate at a 10600 nm wavelength, which is highly absorbed by organic materials including stone and ceramics.
The fine 0.005mm spot size enables detailed artwork on stone surfaces that would appear blurry with a larger spot.

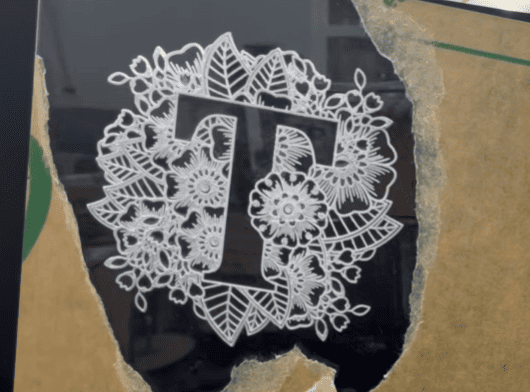

Laser Acrylic Engraving
CO2 lasers have always been popular for acrylic engraving and cutting.
The galvo CO2 system adds speed and precision.
|
Testing showed: • Bright acrylic engraving • Clean edges • Detailed graphics
|
 |
|

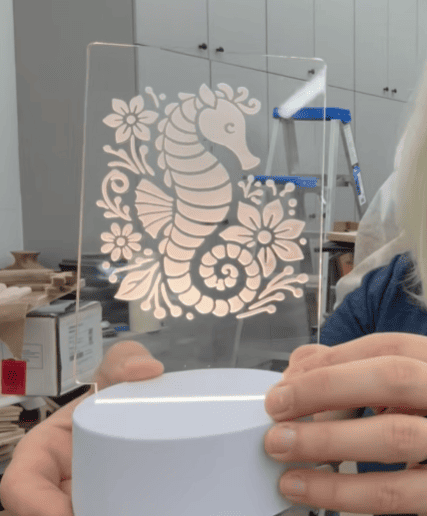

Possible examples: • Acrylic signs • Night lights • Decorative panels |
 |
Beyond Engraving: Cutting Capability
Although galvo CO2 lasers are often discussed for engraving speed, they can also handle simple cutting applications.
Acrylic Laser Cutting
|
Results: • Clean edges • Precise shapes • Minimal finishing required |
 |

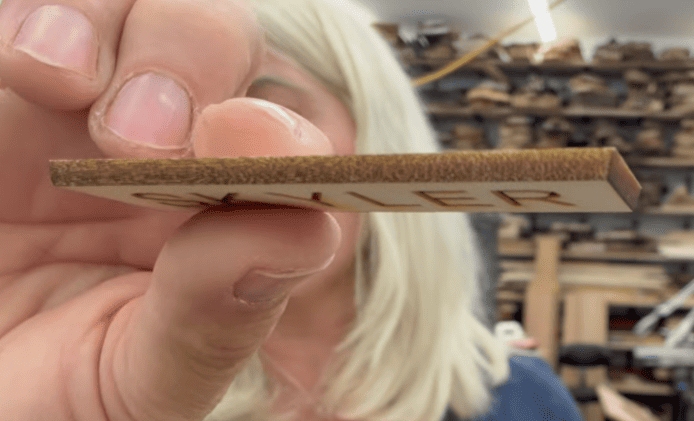

Wood Cutting
|
Applications: • Name plates • Signs • Decorative products
|
 |
Paper and Fabric Cutting
The machine also demonstrated precise cutting on delicate materials.
 |
 |

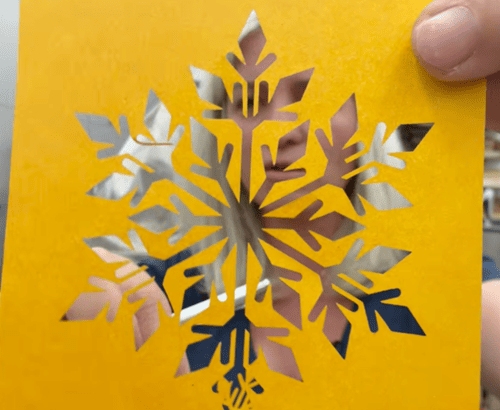

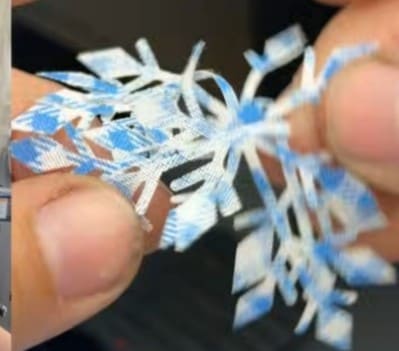

| Paper Cutting | Fabric Cutting |
For thin materials like paper and fabric, the galvo’s speed is actually an advantage.
It cuts so quickly that it minimizes heat-affected zones, preventing scorching or melting at the cut edges, which is particularly valuable for intricate paper crafts and fabric prototypes.

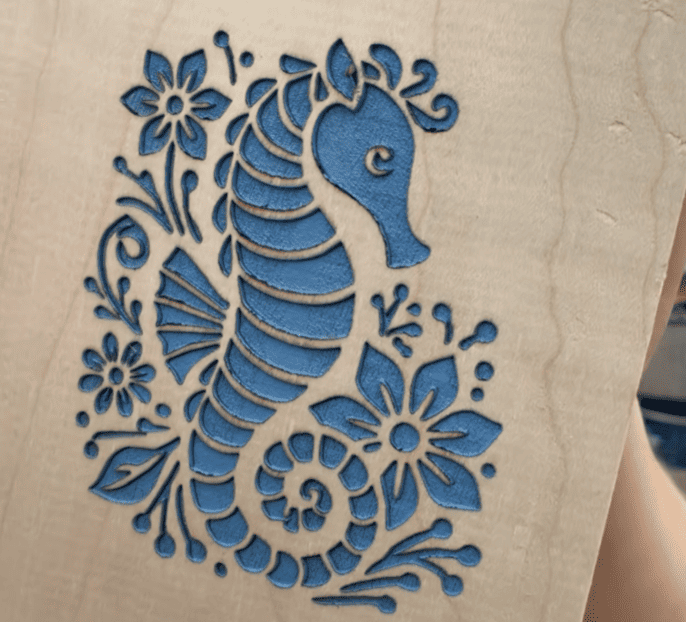

Creative Wood Laser Engraving Task
Paper type masked wood, sprayed with paint after Laser engraved then removed the type. You get a clean, painted filled pattern on wood.
This technique is perfect for custom retail signage, personalized gifts, wedding décor, corporate plaques, and home wall art.
Things To Consider Before Choosing a Galvo CO2 Laser
Although galvo CO2 technology offers major advantages, there are several factors to consider.
Smaller Working Area
Galvo systems prioritize speed and precision.
The standard engraving area is usually smaller than large gantry CO2 machines.
With the slide extension, ComMarker COX’s engraving area could reach 200 mm * 400 mm. Roughly the size of a cutting board or a leather briefcase.
Slight Edge Beveling
Galvo lasers may create slight bevels on thick cuts due to angled beam paths, acceptable for decorative products but less ideal for precision machining.
Safety Requirements
The ComMarker COX is a Class 4 laser system. The machine comes with laser safety glasses to protect safety.
Smoke Extraction
Like other CO2 lasers, engraving and cutting produce smoke. The ComMarker fume extractor is beneficial for offering a comfortable and safe operation.
Lower Maintains Requirement
Unlike traditional glass-tube gantry CO2 lasers that require filling and cleaning water-cooling tanks, RF CO2 lasers like the COX use air-cooling systems. This means easier setup, less maintenance points and no risk of water leaks or frost damage.
Is a Galvo CO2 Laser Better Than a Traditional CO2 Laser?
A galvo CO2 laser does not completely replace traditional gantry CO2 lasers.
Each technology has different strengths.
| Application | Gantry CO2 | Galvo CO2 |
| Large cutting projects | √ | |
| Large working area | √ | |
| Fast engraving production | √ | |
| Detailed artwork | √ |
Gantry CO2 systems remain ideal for large-scale cutting projects requiring large working areas, thick materials, and straight cutting edges, such as furniture and industrial fabrication.
Galvo CO2 systems focus on a different need: high-speed, detailed engraving for personalization businesses, offer faster batch production and a smaller footprint.
The ComMarker COX combines RF CO2 technology, high-speed galvo scanning, and business-focused features to help creators move from occasional projects to professional engraving production.
Should you Consider a Galvo CO2 Laser?
Is a galvo CO₂ laser a worthwhile business investment for you?
Don’t miss the ComMarker COX if you are:
Beginners Starting a Laser Engraving Business
Especially those focusing on:
• Tumblers
• Leather patches
• Personalized gifts
• Premium products
The ComMarker COX’s LiDAR autofocus system paired with ComMarker Studio reduces focusing errors and speeds up learning process. For small businesses producing dozens of customized products daily, this improves production consistency across batches
Existing laser users ready to upgrade:
If you are upgrading from diode lasers or entry‑level gantry CO₂ lasers.
You get much faster marking speed and finer engraving detail to boost your commercial output.
Final Thoughts: Is Galvo CO2 the Future of Desktop Laser Engraving?
Traditional gantry CO2 lasers have played an important role in the growth of laser engraving.
Now, a ComMarker COX RF CO2 galvo laser introduces a different possibility with
More speed.
More precision.
More production efficiency.
For businesses focused on personalization, premium engraving, and high-volume production, don’t miss this new generation of CO2 laser technology which may bring your next step further.
