Laser Engraver for Wood Inlay: How to Create Inlay Products That Sell

Wood inlay can transform ordinary wooden products into premium custom pieces. While traditional methods require routers, chisels, and careful hand fitting, a laser engraver provides a more precise and repeatable way to create detailed inlays, making it a valuable upgrade for woodworkers, laser businesses, and artisans.

What is Wood Inlay?

Wood inlay is a woodworking technique that inserts contrasting materials, such as wood, Pearl Sheet and metal into a recessed area to create decorative patterns, logos, or artwork. It can turn ordinary products like cutting boards, boxes, and displays into premium custom pieces with more color, texture, and value.

Traditional inlay relies on routers, chisels, saws, and careful hand fitting. While highly skilled, complex designs require significant time and precision.

How Much Money Can You Make with Wood Inlay Items?

For laser engraving businesses, the added value can come from customization fees. Typical additional charges for laser engraving services include:

On Etsy, handmade inlay cutting boards are commonly sold in the $150–$450 range. Custom wooden boxes featuring detailed inlay work can also reach $150. This means wood inlay can become a profitable engraving service and product idea.

Who Should Consider Laser Engraving Wood Inlay?

1.Professional Woodworkers Adding Premium Customization

If you already produce furniture, cutting boards, displays, boxes, signs, or other custom woodworking projects, inlay can add another layer of personalization.

Standard engraving has design limitations, but wood inlay adds another layer of visual effect through contrasting materials, colors, and textures.

2.Beginners Building a Laser Engraving Business

If you are buying a laser engraver for business purposes, wood inlay is an interesting way to differentiate your business from other laser engraving businesses.

Instead of selling a standard engraved product, you can offer products with a premium appearance.

3.Wood Inlay Artisans Looking for a Better Workflow

If you already make inlays by hand, you understand the difficult parts of the process:

• Cutting tiny pieces
• Creating accurate recesses
• Maintaining consistent quality

These limitations can be overcome when dealing with small batches or as a hobby, but as your orders increase, the accuracy and efficiency of manual processing become a limit. The digital precision and repeatability of laser can benefit your business.

Why Upgrade from Hand Wood Inlay Tools to a Laser?

Traditional inlay is highly capable, but detailed designs become difficult when precision and repeatability matter. Especially when a customer asks for 5 coasters that would have taken you a day to carve.

A laser workflow makes it easier to produce lettering, logos, curves, and geometric patterns fast, precise, and repeatable.

For professional woodworkers and inlay artisans, this means less time spent on repetitive cutting and more time on design, turning the laser into a precision and productivity upgrade rather than a replacement for craftsmanship.

Can a Laser Engraver Make Wood Inlay?

Yes. A laser engraver can create wood inlays by replacing the most time-consuming cutting steps in traditional inlay work.

How to Make Wood Inlay with a Laser Engraver

The basic process is:

1.Create the Design

Convert your logo, artwork, or pattern into a vector file.

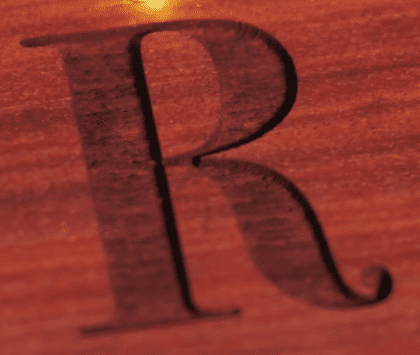

2.Engrave the Inlay Pocket

Import your design into the laser engraving software. Fill the design and wait for the laser to remove wood based on the design to make an inlay pocket.

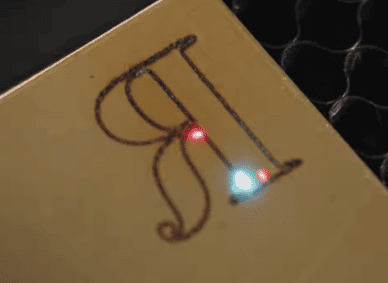

3.Cut the Inlay Piece

Un-fill the design and use the outline to cut the matching veneer.

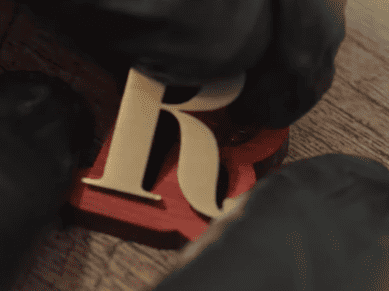

4.Glue and Sand

Place the veneer into the pocket, glue them, and sand the surface.

Why Commarker Omni X Works Well as a Wood Inlay Tool

A good laser for wood inlay needs more than cutting power. It should provide a fine spot size for detailed patterns, stable focus for accurately matching the inlay pocket and insert, and adjustable settings for different wood species and veneer thicknesses.

Typical wood inlay dimensions include:

These requirements make laser control particularly important.

The ComMarker Omni X UV Laser Engraver is designed for precision-focused applications where small details and controlled material removal matter.

• 0.0019 mm spot size for fine patterns and detailed inlay designs
• Expandable to 250 × 400 mm max engraving area, suitable for projects from pocketknife scales to cutting boards
• Supports processing of wood, shell, and other materials, allowing more versatile inlay combinations
• Precise control of laser parameters helps users fine-tune cutting and engraving results for different materials and thicknesses

For woodworkers, the goal is to create accurately matched pockets and inserts with consistent results fast.

ComMarker Omni X 12W laser: Real-World Wood Working Tests

Test	Material	Thickness	Result
Cutting	Oak	5 mm	3 cm² design in 20 s
Cutting	Plywood	3 mm	0.3 mm minimum strip
Deep engraving	Wood	1 mm depth	30 × 30 mm in 60 s

When combined with proper material testing and kerf compensation, a precision UV laser can help transform wood inlay from a time-consuming craft into a more repeatable customization process.

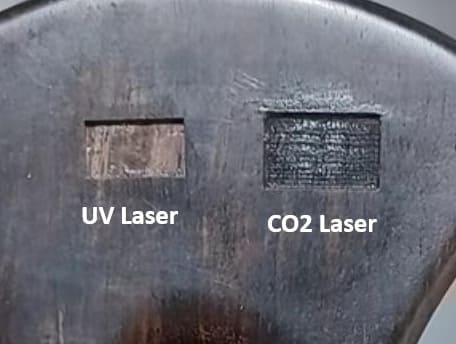

UV vs. CO2 Laser engraver for wood inlay

CO2 lasers remain an excellent choice for woodworking. Their 10600 nm wavelength works particularly well with wood and plastics, making them useful when your projects involve thicker wood, acrylic and other plastic fabrication.

ComMarker COX RF CO2 Galvo Laser Engraver offer:

• 0.005 mm spot size, smaller than most gantry CO2 systems
• 15000 mm/s fast engraving for quick turnaround

However, CO2 laser processing relies more heavily on thermal effects. Although they remove wood faster during deep engrave, the tradeoff is achieving the best combination of engraving speed and quality may require more parameter testing.

Quick Decision Table: UV vs. CO2 for Wood Inlay

For artisans primarily focused on detailed wood inlay, UV is the stronger choice. For workshops that need substantial wood cutting or plastic workflow alongside inlay, CO2 offers greater cutting capability and versatility.

Laser vs. Other Wood Inlay Methods

Laser Engraving Skills for Better Wood Inlay Finish

Adjust for kerf: Test the fit and compensate for the laser’s kerf. We found that adding about 0.004″ (0.1 mm) of contour and mirroring the inlay pieces helped achieve a tighter fit. Mirroring the insert geometry can help account for the opposite sides of the mating surfaces, but the exact offset should be determined through a test fit.

Use thicker veneer: Around 1/16–3/32″ gives you more room for sanding and depth variation.

Test each wood: Different species and densities can produce different engraving and cutting results.

Use masking tape when cutting: Diode lasers and CO2 lasers are likely to create burn marks during cutting and engraving. Applying a layer of tape to the engraved surface can simplify subsequent processing.

Sand after assembly: Leaving the inlay slightly proud gives you room to create a perfectly flush surface.

What Can You Sell with Laser Wood Inlay Technique?

Wood inlay is especially valuable for products where customers appreciate craftsmanship and personalization.

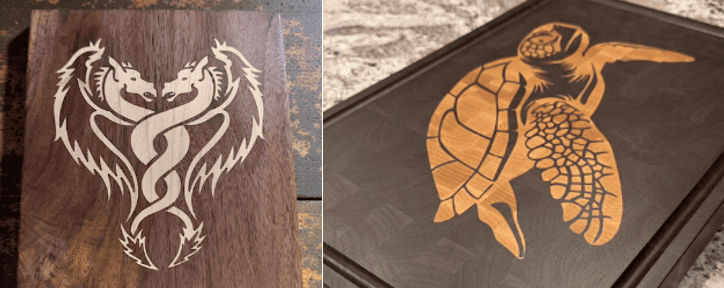

Custom Cutting Boards

A standard cutting board can become a premium personalized product with ideas such as:

Ideas: names, family logos, wedding dates, city maps, decorative patterns, custom artwork.

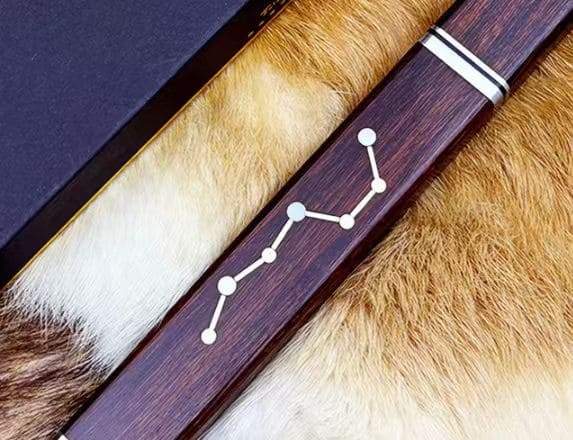

Knife Displays and Collector Displays

Wood inlay is especially popular among collectors who want unique presentation pieces.

Ideas: knife brand logos, names, symbols, emblems, detailed artwork, personalized messages.

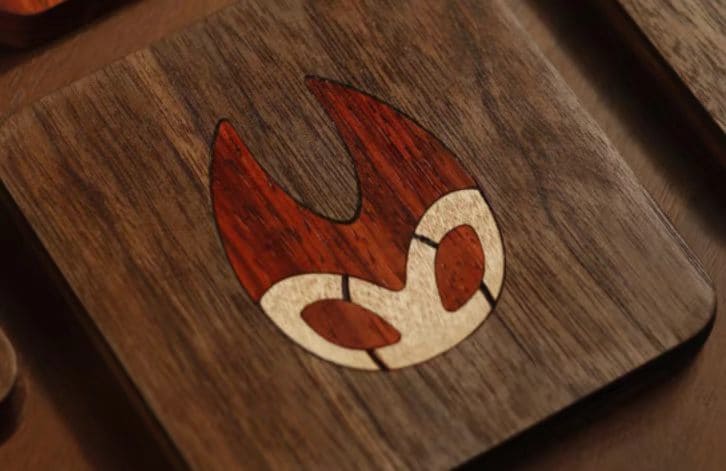

Wooden Boxes

Inlay can transform a simple wooden box into a premium gift or keepsake product.

Ideas: initials, family crests, logos, geometric patterns, artwork, commemorative designs.

Signs and Corporate Gifts

For businesses and organizations, wood inlay creates a more premium alternative to standard engraving.

Ideas: company logos, awards, branded gifts, plaques, event souvenirs.

How Quickly Can Laser Wood Inlay Pay Back Your Investment?

Note: Example product prices are based on handmade wood inlay products listed on Etsy.

Wood inlay coasters set: $30 – $40 (many handmade wood inlay coasters sets fall within this range)

Custom inlay cutting board: $100 – $250+ (standard custom models are around $100, while high-end single-letter/complex inlay versions can reach $250+.)

Besides wood inlay projects, laser engraving businesses can also create other personalized products such as personalized tumblers, keychains, cups and other accessories, which can help cover the cost even faster

Final Thoughts: Is a Laser Engraver Worth it for Wood Inlay?

Wood inlay turns ordinary wood products into premium custom pieces. A laser engraver helps woodworkers, artisans, and small businesses create more detailed designs with better repeatability and less manual cutting.

For thick wood cutting, CO2 remains a strong option. For woodworkers who prioritize fine details, repeatability, and high-value customization, the ComMarker Omni X provides a precision-focused UV laser solution for wood inlay and other detailed engraving applications.

If you want a tool that could improve efficiency and quality of your wood products, that answer may be a precision-focused UV laser.
